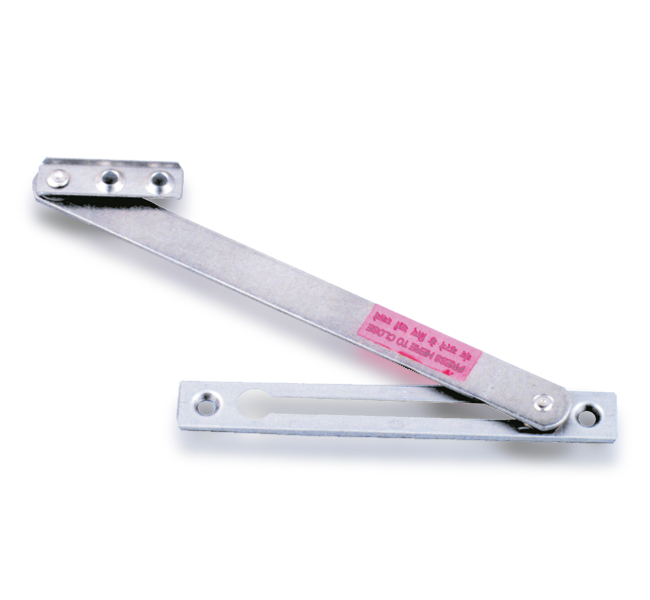

Ebco Windows Fittings Right Angle Stay

Continue Shopping or Checkout

  1. Made of AISI 304 stainless steel.
  2. Auto latch at 90° opening.
  3. Press the latch to close window.
  4. Finish: Raw Steel
  • Specifications
    Code No. Max. Recommended Size of Shutter (mm)
    Width Height
    RAS 1 500 1200
  • Fitting Instructions
    1. Refer drill hole details for center distances of screw holes.
    2. Fit latch plate onto window frame leaving approximately 150 mm from the shutter side (Refer diagram).
    3. Fit small brackets onto bottom slide of window shutter leaving approximately 25 mm from the edge.
    4. IMPORTANT: Dimensions 150 mm and 25 mm are approximate dimensions and will vary as per hinges used to achieve 90° opening.
    5. Gap required to fit stay between shutter and frame is 15mm. Latch Bracket and small Bracket are to be fitted flush for min. gap.
