Ebco Worksmart Smart Lift Electric Basic-3

• Specification
• Overview
• Application
• Shipping

• SPECIFICATIONS



  Item	Item Code	size	Finish

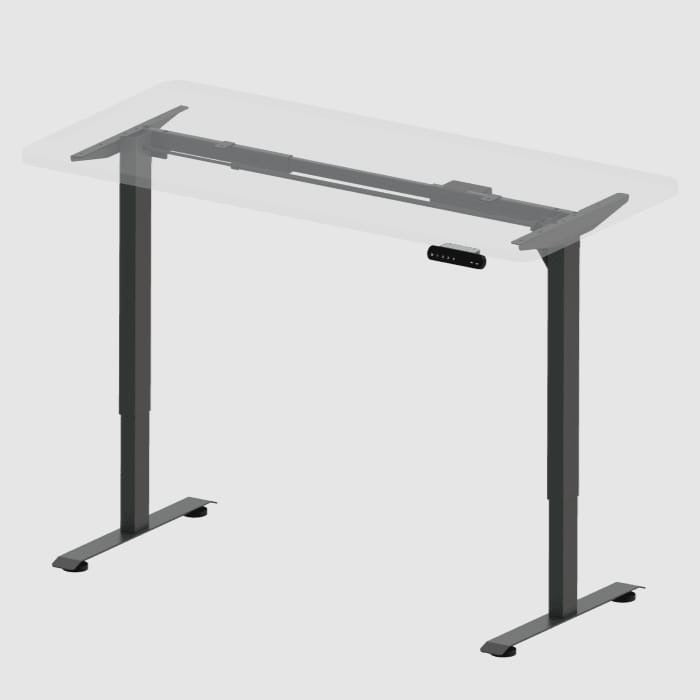

  Smart Lift Electric Basic-3	SLTLB3-E-AT	Height Range: 695-1175mm, Height Range (Digital): 71-119cm, Speed: 20mm/s, Max Loading: 60KG, Sound Level: ≤50dB, Frame Size: 830-1320mm, Bracket: 450mm, Feet Length: 600mm, Matched Desktop Size: 1000-1600mm (L) 500-600mm (W), Operating Voltage: 100-240V	Anthracite




  *If you have any specific question related to the product & if you want to buy Sold Out products, please contact us.

• Overview

  1. Smart lift with single motor mechanism for smooth height transitions.
  2. Digital panel with 4 memory settings for quick sit-stand adjustment.
  3. Height adjustment: 695 to 1175mm, Width adjustment: 830 to 1320mm

  4. Stroke: 480mm, Speed: 20mm/sec, Voltage: 100-240V
  5. Load capacity: Dynamic: 60kg, Static: 70kg
  6. Recommended tabletop size: width up to 1600mm & depth up to 650mm (tabletop not included).

• Fitting Instructions

  1.






  Operation Manual




  1. Handset Interface

  • UP Button - ▲
  • DOWN Button - ▼
  • Setting Button - M
  • Height Memory Button 1 - 1
  • Height Memory Button 2 - 2
  • Height Memory Button 3 - 3
  • Height Memory Button 4 - 4

  NOTE: Please ensure there are no obstacles during use, do not let the desk be close to the wall, and finally make sure there is enough wire to support the lifting.




  2. Initialization Operation

  • When the system is abnormal, or the handset displays "RST", it is necessary to initialize the standing desk. The initialization operation is to press and hold ▼ until the frame has reached the lowest position; Then press and hold ▼ for 5 seconds until you hear a beep.




  3. Operation of The Desk

  • Press ▲ to move the desk up until it reaches the highest position.
  • Press ▼ to move the desk down until it reaches the lowest position.
  • Press ▲ or ▼ in short desk runs a small distance.




  4. The Memory Function

  • This handset can store n memory points. The memory positions are not lost when the power is turned off.
  • Move the desk up or down to the desired position;
  • Press <M> in short until the display shows “S-”, and “-” flashes, then press <1> to save position 1; Repeat the procedure to save the other positions.




  5. Upper and Lower Limit Settings

  • The system supports the height limit of the desk. The operation method is, press and hold the ▲ & ▼ at the same time for 5 seconds at the corresponding height until hear the buzzer, indicating the limit is stored successfully. When the desk is in the upper half of the stroke, the limit is the highest position. When in the lower half of the table stroke, the limit is the lowest position.
  • Cancel height limit :
    1. Method 1: Reset the system, the high and low limit will be cancelled.
    2. Method 2: Run the desk to the limit high or low point, press and hold the ▲ & ▼ for 5 seconds at the same time until hear the buzzer, indicating that the limit position is canceled successfully.




  6. Lock and Unlock

  • Lock: Press and hold <M> & ▲ together for 5 seconds, when the digital display shows "Loc", it means the system has been locked, and the desk cannot be raised or lowered.
  • Unlock: Press and hold <M> & ▼ together for 5 seconds, when the digital display shows from "Loc" to normal digital, it means the system has been unlocked.




  7. Factory Reset

  • When the system is replaced with a new leg, or the parameters need to be restored to the factory settings, press and hold ▲ & ▼ for 10 seconds at the same time to hear a long buzzer, and the parameters are restored to the factory settings and forced to initialize.




  8. Timing Setting

  • Press <1> & <3> at the same time, the handset displays 0.0h during the initial setting , then press ▲ or ▼ to adjust the timing, with 0.5 hours as a change, and automatically exit after 2 seconds. At this time, a decimal point will flash after the handset is turned off, indicating that there is a timing running. When the timing is reached, the buzzer will beep 5 times and the handset will wake up automatically.




  9. Internal Parameters

  • Long press <M> for 15 seconds, handset display shows "S-x", and "x" flashes ( "x" is the parameter group). At this time, press <M> to enter the parameter group to set the corresponding parameters. Press ▲ or ▼ to switch the parameter group to "S-1", use ▲ or ▼ to select 1 or 0; ( 0 = CM & 1 = INCH ).
  • Press <M> again to save and return to the running interface.




  10. Error Code




  Error Code	Possible Cause	Action
  E05	The sensor encounters an obstacle and stops functioning.	Release the button and restart.
  E07	Protection when the main power supply is running, below 20V.	Reconnect power. Power on reset.
  E08 (H90 ✔ / H91 ✘)	Frame tilts when running.	Initialize the frame. Reset the operation.
  HOT	Temperature of motor is high or running time exceeds 2 mins within 18 mins.	Wait for motor to cool. Let system rest for at least 18 mins.
  E18	Weight on Motor 1 is over the limit.	Reduce the weight by removing items.
  E28 (H90 ✔ / H91 ✘)	Weight on Motor 2 is over the limit.	Reduce the weight by removing items.



• As per store shipping policy. If you need any other finish please contact our sales team.
