Rs. 2,160.00

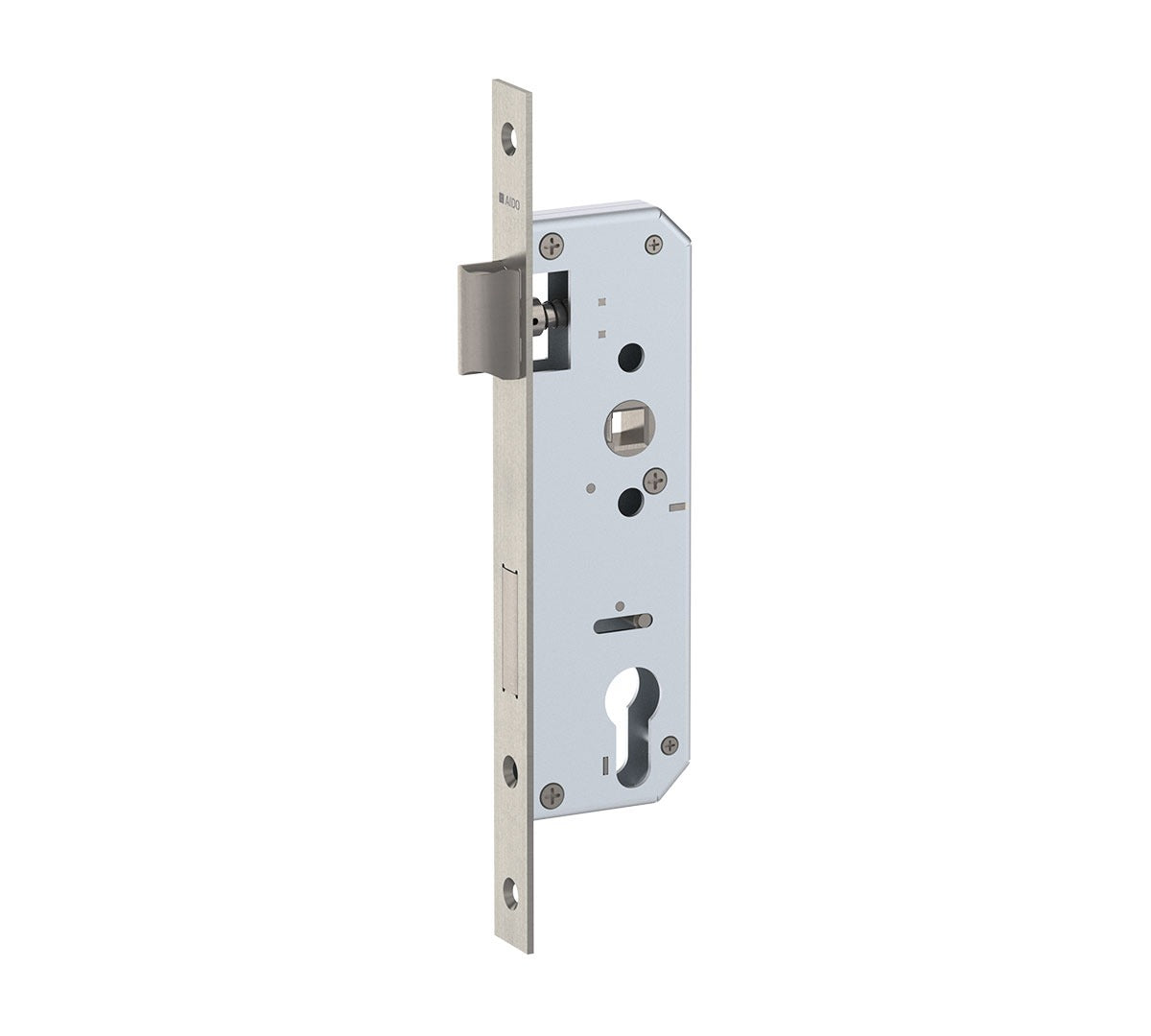

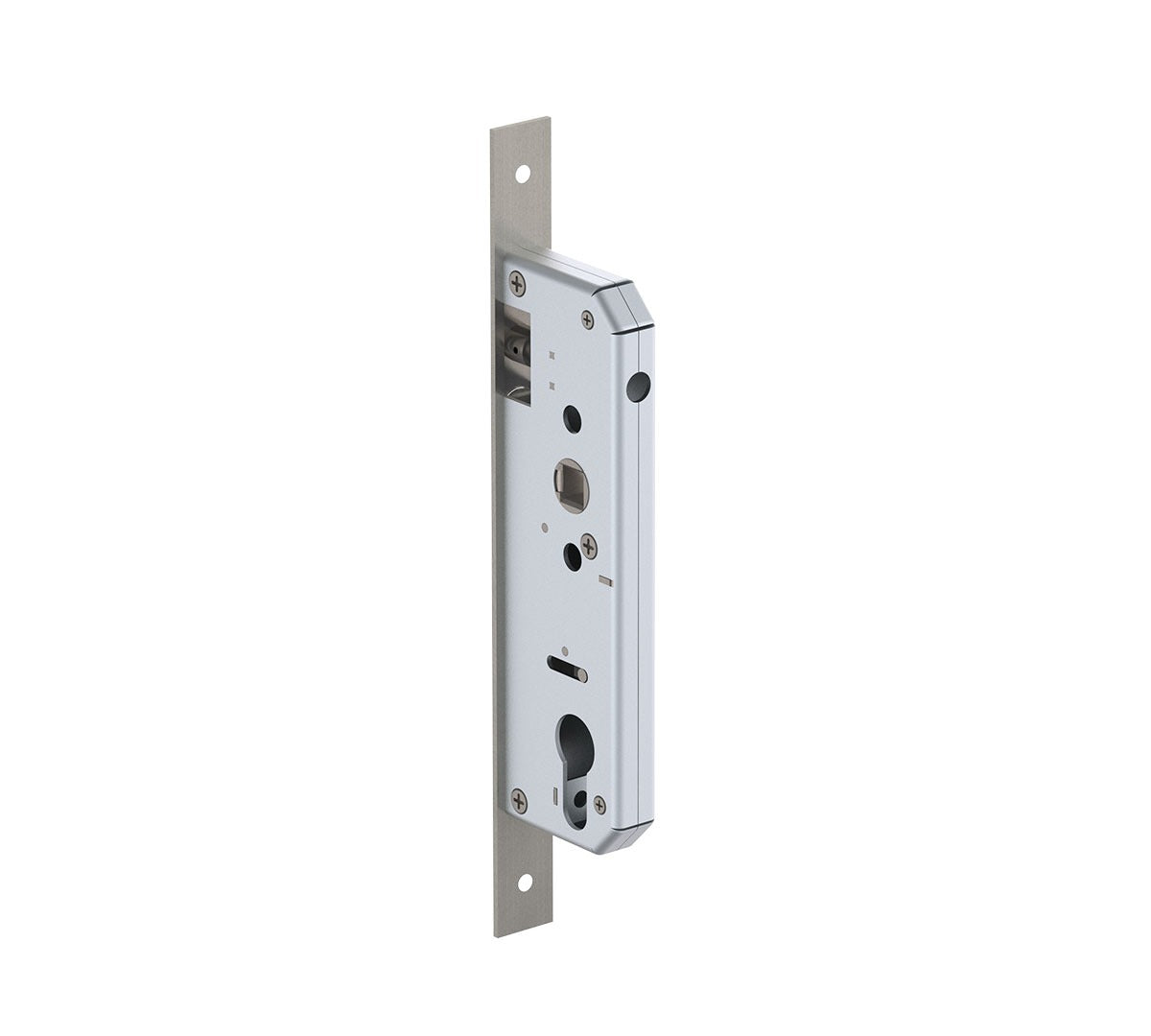

The Dorma AIDO XL-C 2015 is a premium Sash Lock engineered for narrow stile doors with a 35mm backset. Designed for use with tubular lever handles, the lock body sits concealed inside the door — fixing hole-to-hole with handle and roses for a clean, seamless finish. Tested for 200,000 cycles for long-term reliability.
| Specification | Details |
|---|---|
| Model | XL-C 2015 |
| Ordering Code | 9112764 |
| Forend Width | 20 mm |
| Lock Centre to Centre (CTC) | 72 mm |
| Lock Backset | 35 mm |
| Forend Finishing | Satin Stainless Steel (SSS) |
| Forend Material | SS 304 |
| Suitable For | Narrow Stile Doors |
| Brand | Dorma (AIDO XL-C Series) |
AIDO XL-C offers mortise locks for timber, metal, and aluminium doors of the highest standard of quality and functional reliability — built using high-grade materials, precise production techniques, and a comprehensive quality management system.
AIDO XL-C mortise locks are available in a wide range for both wide and narrow stile doors in timber and aluminium. Key benefits include:
Finished in high-quality Satin Stainless Steel, AIDO XL-C locks satisfy the highest demands for door furniture appearance while delivering unbeatable performance, convenience, safety, and security.
Ships as per our store shipping policy. Need a different finish? Contact our sales team. Customized orders may take up to 25 days for dispatch and are non-returnable.
Sold Out

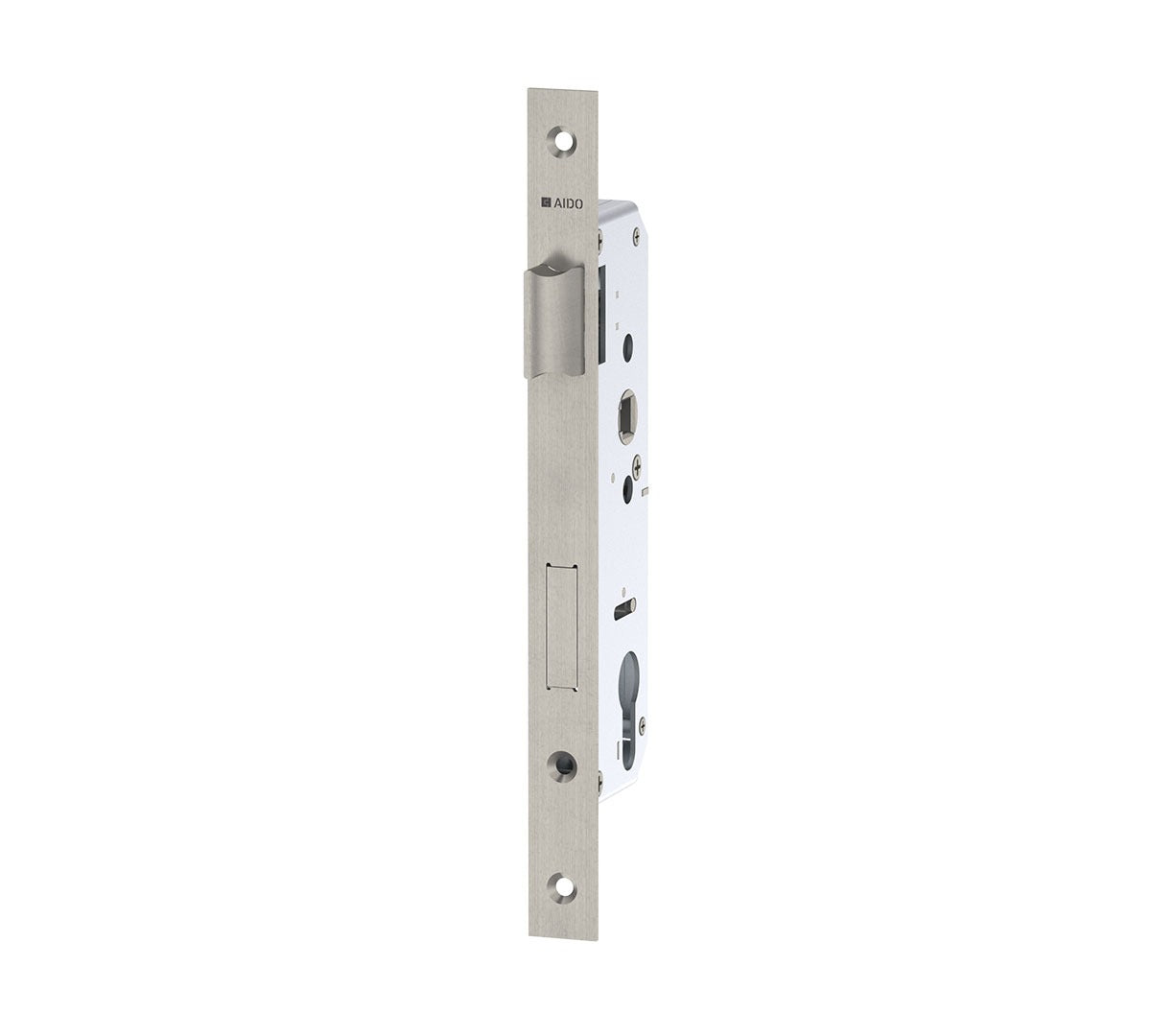

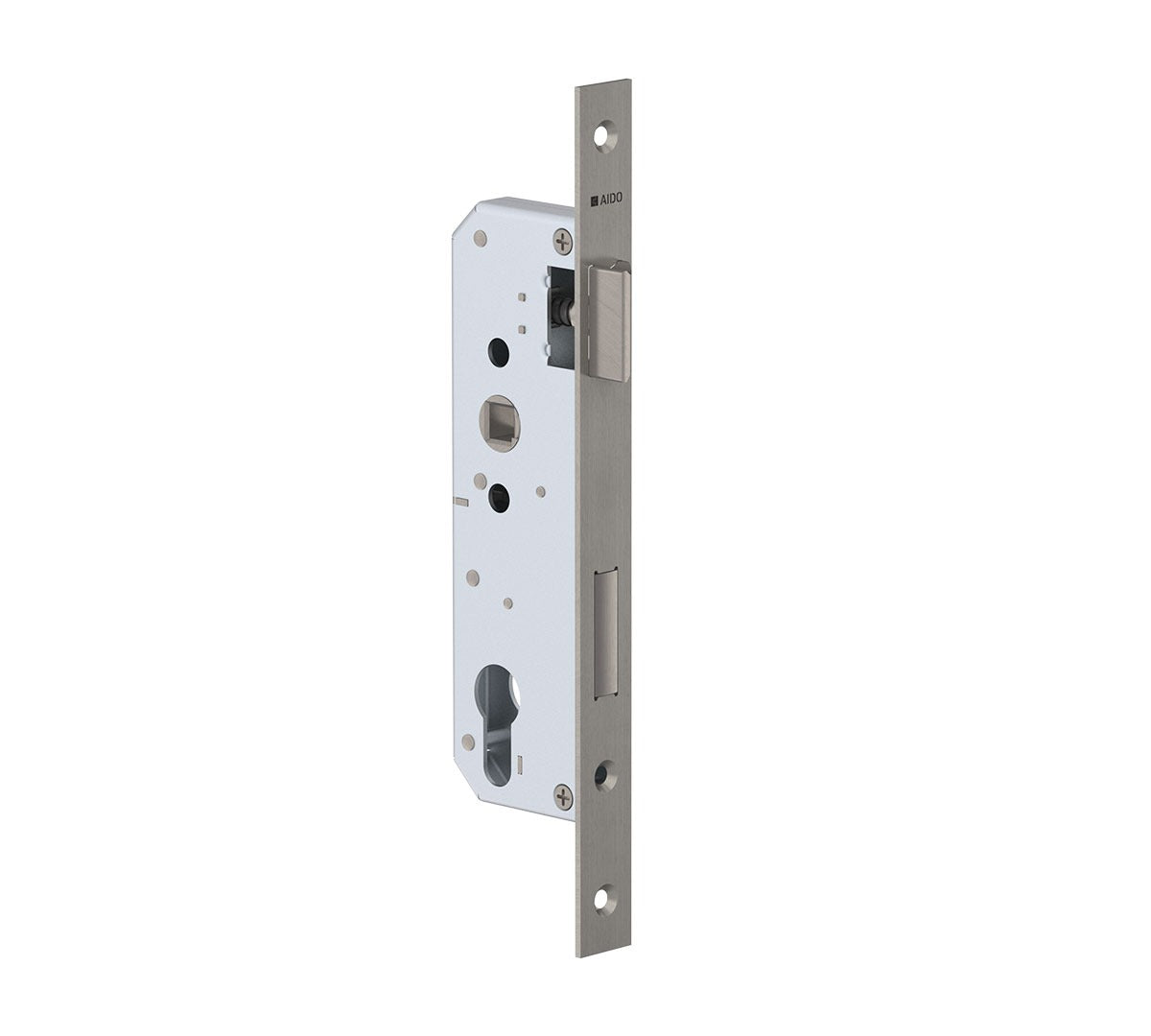

The Dorma AIDO XL-C 2062 is a premium Latch Lock designed for wide stile doors. With a 22mm forend width and 50mm backset, it provides smooth, reliable latching in a robust SS 304 body with a Satin Stainless Steel finish — tested for 200,000 cycles for long-term reliability.
| Specification | Details |
|---|---|
| Model | XL-C 2062 |
| Ordering Code | 9117890 |
| Lock Backset | 50 mm |
| Lock Centre to Centre (CTC) | - |
| Forend Width | 22 mm |
| Forend Finish | Satin Stainless Steel (SSS) |
| Forend Material | SS 304 |
| Suitable For | Wide Stile Doors |
| Brand | Dorma (AIDO XL-C Series) |
AIDO XL-C offers mortise locks for timber, metal, and aluminium doors of the highest standard of quality and functional reliability — built using high-grade materials, precise production techniques, and a comprehensive quality management system.
AIDO XL-C mortise locks are available in a wide range for both wide and narrow stile doors in timber and aluminium. Key benefits include:
Finished in high-quality Satin Stainless Steel, AIDO XL-C locks satisfy the highest demands for door furniture appearance while delivering unbeatable performance, convenience, safety, and security.
Ships as per our store shipping policy. Need a different finish? Contact our sales team. Customized orders may take up to 25 days for dispatch and are non-returnable.
Rs. 2,325.00

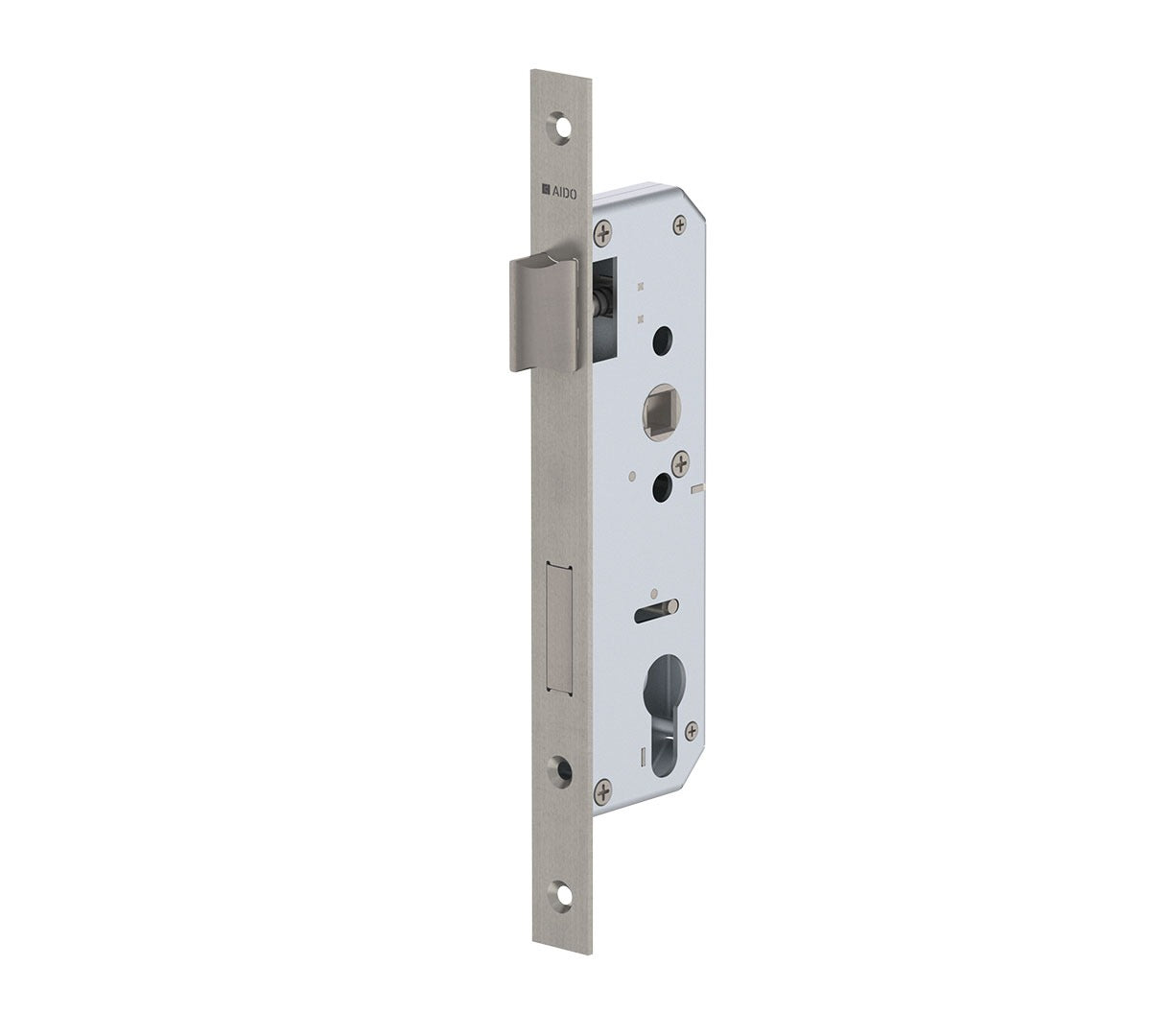

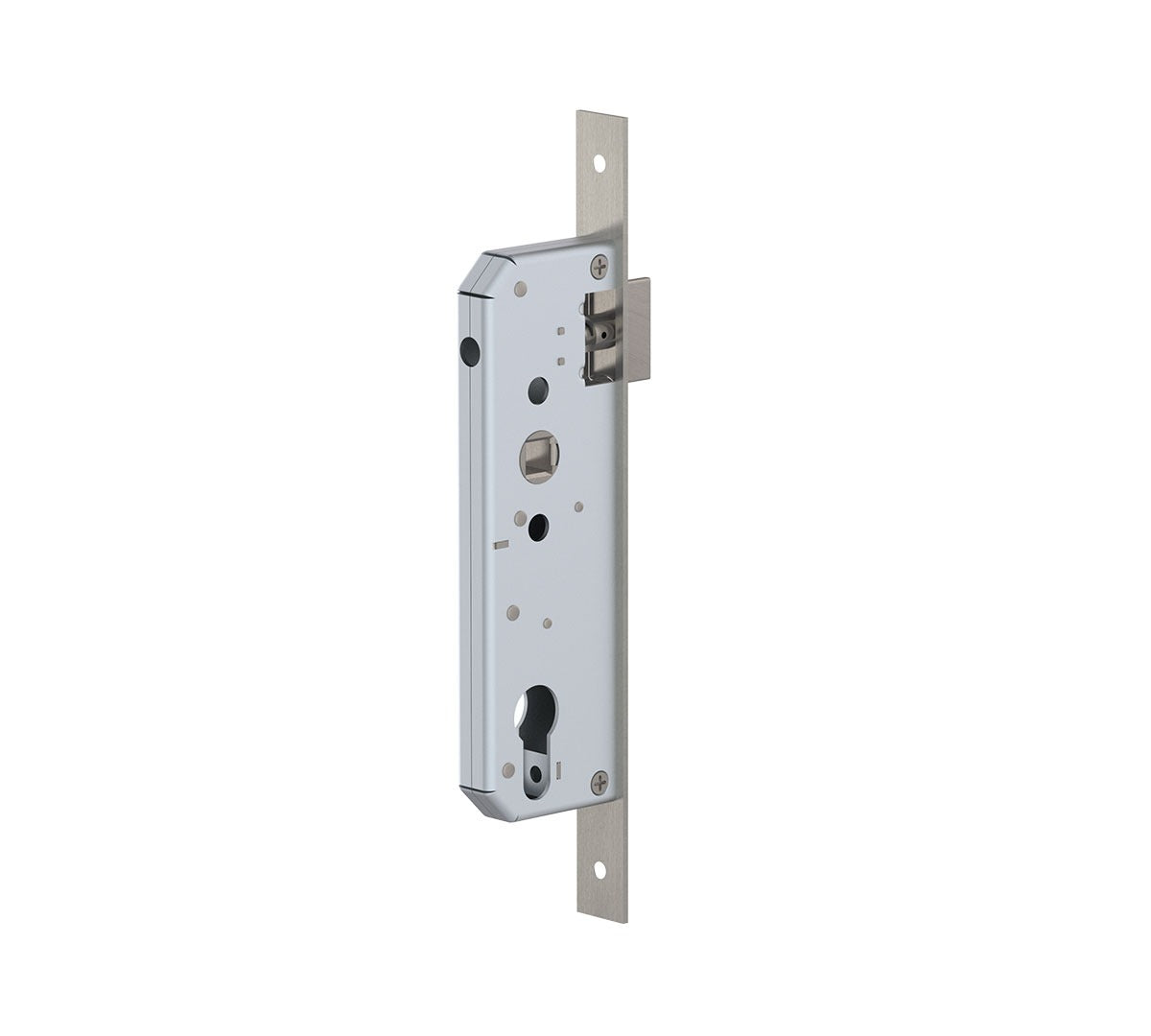

The Dorma AIDO XL-C 2019 is a premium Dead Lock engineered for narrow stile doors. With a 20mm forend width and 35mm backset, it delivers robust key-operated deadbolt security in a slim profile. Manufactured from SS 304 with a Satin Stainless Steel finish — tested for 200,000 cycles for long-term reliability.
| Specification | Details |
|---|---|
| Model | XL-C 2019 |
| Ordering Code | 9112759 |
| Forend Width | 20 mm |
| Lock Centre to Centre (CTC) | 72 mm |
| Lock Backset (D) | 35 mm |
| Forend Finishing | Satin Stainless Steel (SSS) |
| Forend Material | SS 304 |
| Suitable For | Narrow Stile Doors |
| Brand | Dorma (AIDO XL-C Series) |
AIDO XL-C offers mortise locks for timber, metal, and aluminium doors of the highest standard of quality and functional reliability — built using high-grade materials, precise production techniques, and a comprehensive quality management system.
AIDO XL-C mortise locks are available in a wide range for both wide and narrow stile doors in timber and aluminium. Key benefits include:
Finished in high-quality Satin Stainless Steel, AIDO XL-C locks satisfy the highest demands for door furniture appearance while delivering unbeatable performance, convenience, safety, and security.
Ships as per our store shipping policy. Need a different finish? Contact our sales team. Customized orders may take up to 25 days for dispatch and are non-returnable.
Rs. 760.00
| Specification | DORMA EURO PROFILE CYLINDER-SERRATED KEYS THUMB TURN EMERGENCY RELEASE SLOT XL - C |
|---|---|
| Model | 2012A & 2072A |
| Size | 2012A - 60 mm, 2072A - 70 mm |
| Reference Code | 2012A - 9127321, 2072A - 9113978 |
| Forend Finish | Satin Nickel Plated |
Rs. 760.00
AIDO XL-C Euro Profile Cylinders are the key to a proven locking system security on both external and internal doors. Certified high-quality manufacturing offers precise, dependable functioning and longevity. Cylinders supplied with 3 keys.
|
🔑
3 Keys Included
|
✨
Satin Nickel Plated
|
🔒
6-Pin Security
|
🏆
Tested 100K Cycles
|
|
Tested for
100,000 Cycles |
|
| Specification | Details |
|---|---|
| Models Available | 2010A, 2011A, 2012A, 2070A, 2071A, 2072A, 2080A, 2081A, 3513, 3514 |
| Sizes | 42 mm, 60 mm, 70 mm, 80 mm |
| Finish | Satin Nickel Plated (SNP) |
| No. of Keys | 3 Keys, Non Master Keyed |
| Pin Configuration | 6 Main Pins |
| Types | Both Side Key, Thumb Turn & Key, Emergency Release, Half Cylinder |
| Model Number | Description | Ordering Code | Finish | Length |
|---|---|---|---|---|
| XL-C 2010A | Euro Profile Cylinder, Both Side Key | 9127319 | SNP | 60 mm |
| XL-C 2011A | Euro Profile Cylinder, Thumb Turn and Key Operation | 9127320 | SNP | 60 mm |
| XL-C 2012A | Euro Profile Cylinder, Thumb Turn and Emergency Release Slot | 9127321 | SNP | 60 mm |
| XL-C 2070A | Euro Profile Cylinder, Both Side Key | 9113976 | SNP | 70 mm |
| XL-C 2071A | Euro Profile Cylinder, Thumb Turn and Key | 9113977 | SNP | 70 mm |
| XL-C 2072A | Euro Profile Cylinder, Thumb Turn and Emergency Release Slot | 9113978 | SNP | 70 mm |
| XL-C 2080A | Euro Profile Cylinder, Both Side Key | 9113910 | SNP | 80 mm |
| XL-C 2081A | Euro Profile Cylinder, Thumb Turn and Key | 9113911 | SNP | 80 mm |
| XL-C 3513 | Euro Profile Half Cylinder With Key | 9115984 | SNP | 42 mm |
| XL-C 3514 | Euro Profile Half Cylinder With Thumb Turn | 9113902 | SNP | 42 mm |
*SNP - Satin Nickel Plated
DORMA AIDO XLC euro profile cylinders are the key to a credible locking system security on both sides of the doors. High-quality materials and certified manufacture provides precise, reliable functionality and durability.
AIDO XL-C offers a comprehensive cylinder portfolio - double, thumb turn, single, and emergency release cylinders with the right level of protection. AIDO XLC euro profile cylinders come with a serrated key mechanism along with 6 main pins and a wide range of EPC types and lengths. Available in sizes 42mm, 60mm, 70mm and 80mm with 3 keys (non-master keyed).
To be installed with a deadlock. Suitable for both external and internal doors. Available in the following configurations:
As per store shipping policy. Pan-India delivery available.
If you need any other finish, please contact our sales team - we can provide almost all kinds of finishes.
