Rs. 53,600.00

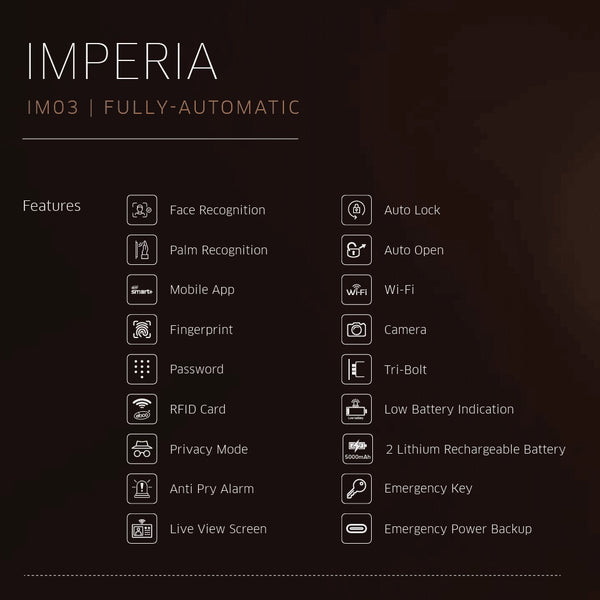

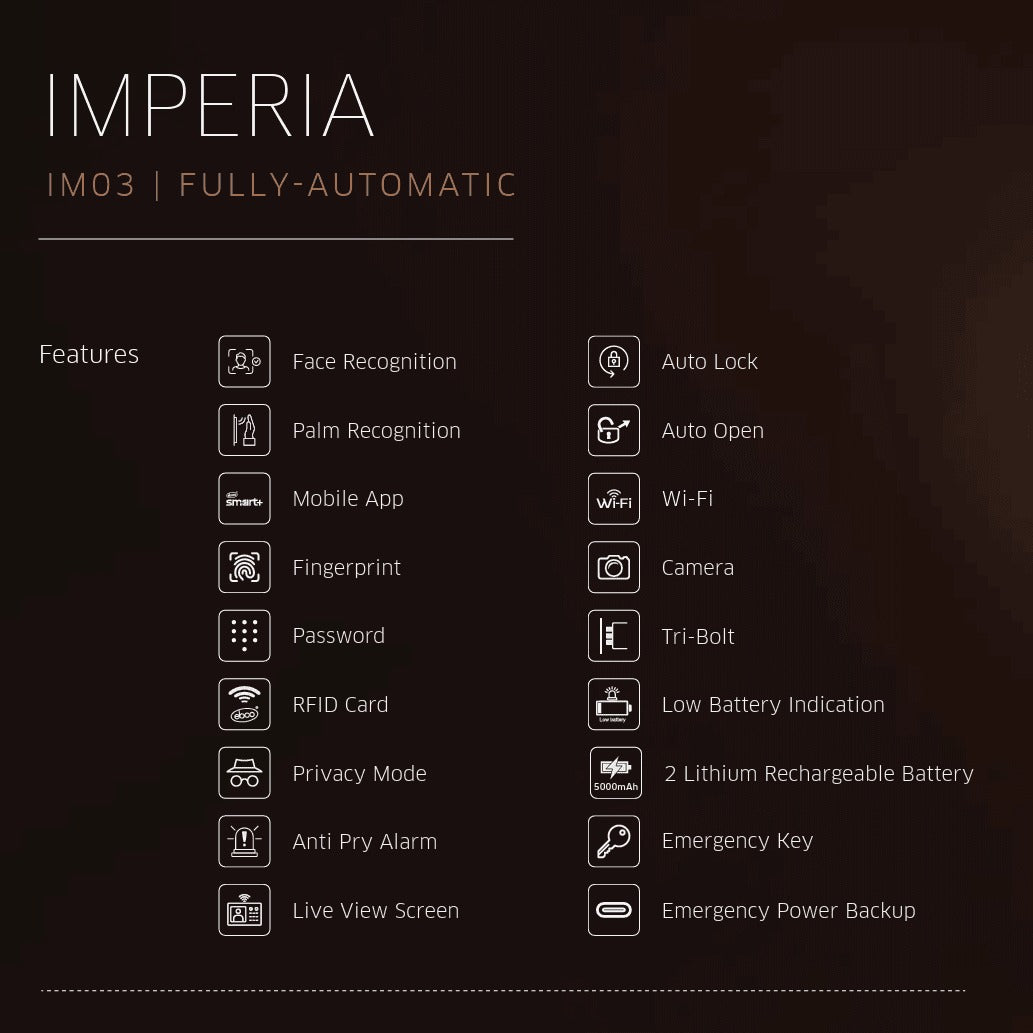

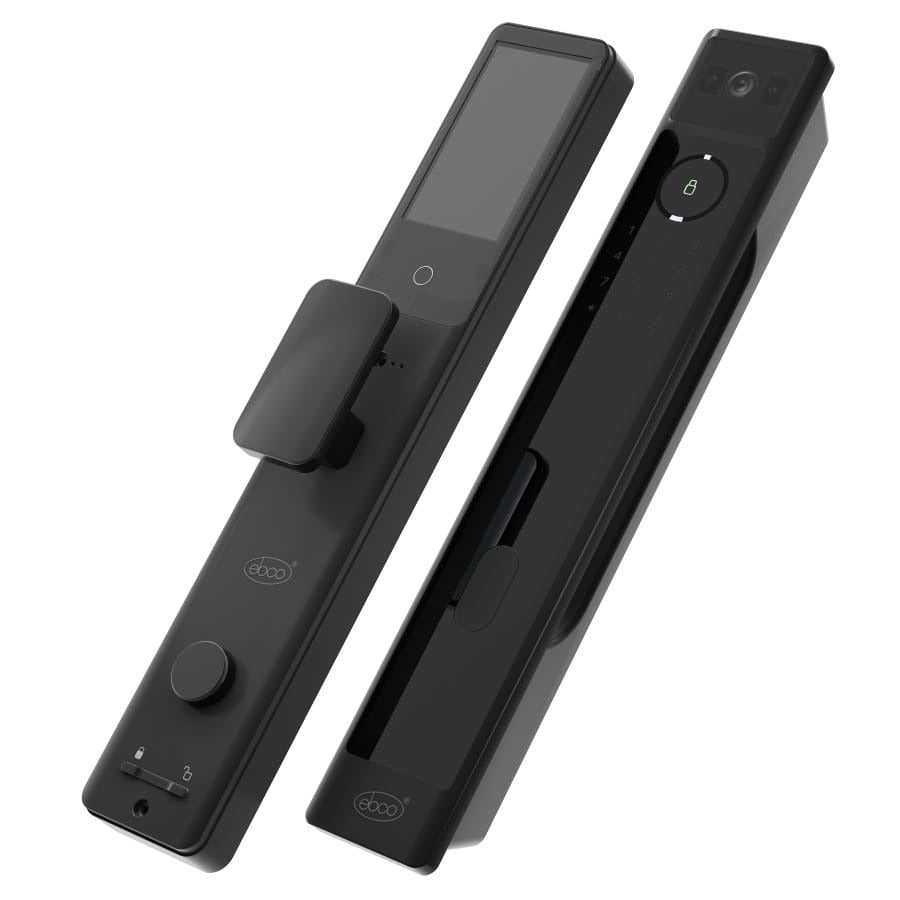

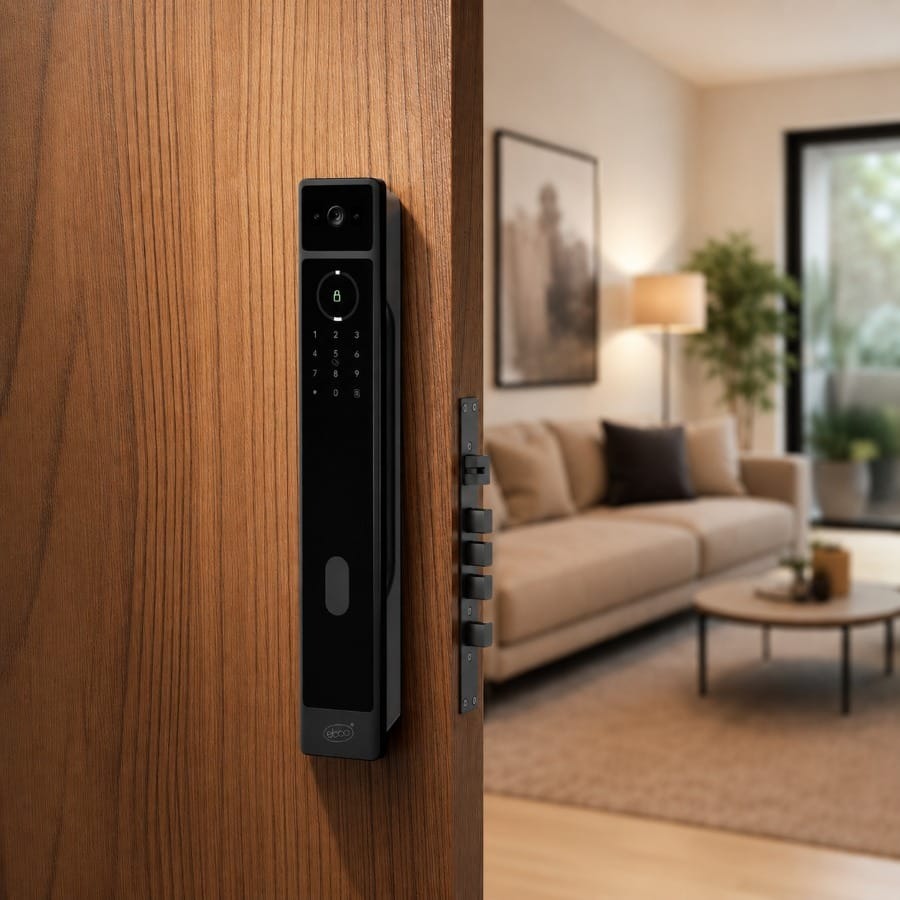

Experience next-level home security with the Ebco IMPERIA I IM03 — a premium digital door lock engineered for modern living. Whether you're stepping out or managing access remotely, IMPERIA puts complete control at your fingertips.
| Feature | Details |
|---|---|
| Access Modes | Face Recognition, Palm Scanning, Fingerprint, RFID Card, Secure Password |
| Remote Control | WiFi-enabled with real-time alerts via Mobile App |
| Auto Lock & Open | Fully automatic locking and opening |
| Security | Tri-Bolt, Anti Pry Alarm, Privacy Mode |
| Camera | Live View Screen — see visitors on mobile app & inside screen |
| Battery | 2 Lithium Rechargeable Batteries (4200mAh) with low battery indication |
| Emergency Access | Emergency Key + Emergency Power Backup (USB) |
| Warranty | 2-Year Manufacturer Warranty |
| Parameter | Details |
|---|---|
| Item Code | DHDDLIM037AFA-BL |
| Finish | Black |
| Door Type | Wooden Door |
| Door Thickness | 40–90 mm |
| Backset | 60 mm |
| Dimensions (Internal) | 419(H) × 74(W) × 62(D) mm |
| Dimensions (External) | 420(H) × 70(W) × 47.7(D) mm |
| Access Type | Max Users |
|---|---|
| Admin | Up to 10 |
| Fingerprint | Up to 50 |
| Password | Up to 100 |
| Card | Up to 100 |
| Face + Palm | Up to 50 |
🎉 Flat 20% Off — Use Code FLAT20 at Checkout
Available at KnobsKart.com — India's premium hardware destination.
Rs. 66,100.00

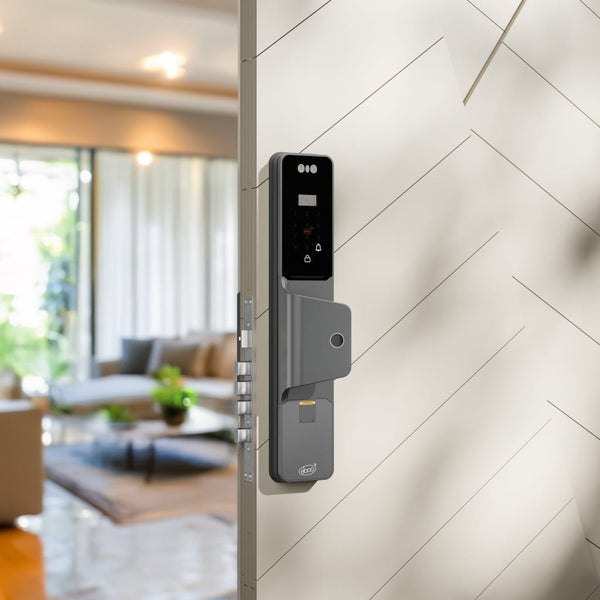

Experience next-level home security with the Ebco IMPERIA I IM07 | IM08 — a premium digital door lock engineered for modern living. Whether you're stepping out or managing access remotely, IMPERIA puts complete control at your fingertips.
| Feature | Details |
|---|---|
| Access Modes | Face Recognition, Palm Scanning, Fingerprint, NFC Card, Secure Password |
| Remote Control | WiFi-enabled with real-time alerts via Mobile App |
| Auto Lock & Open | Fully automatic locking and opening |
| Security | Tri-Bolt, Anti Pry Alarm, Privacy Mode |
| Camera | Live View Screen — see visitors on mobile app & inside screen |
| Battery | High-capacity rechargeable lithium battery with low battery indication |
| Emergency Access | Emergency Key + Emergency Power Backup (USB) |
| Warranty | 2-Year Manufacturer Warranty |
| Parameter | Details |
|---|---|
| Item Code | IM07: DHDDLIM077AFA-BL (Black) | IM08: DHDDLIM087AFA-AT (Anthracite) |
| Door Type | Wooden Door |
| Door Thickness | 35–55 mm |
| Backset | 60 mm |
| Dimensions (Internal) | 422(H) × 80(W) × 78.8(D) mm |
| Dimensions (External) | 422(H) × 80(W) × 71.8(D) mm |
| Access Type | Max Users |
|---|---|
| General | Up to 191 |
| Admin | Up to 9 |
| Fingerprint | Up to 50 |
| Password + Card + Palm + Face | Up to 150 |
🎉 Flat 20% Off — Use Code FLAT20 at Checkout
Available exclusively at KnobsKart.com — India's premium hardware destination.
Rs. 57,400.00
Experience next-level home security with the Ebco IMPERIA I IM05 | IM06 — a premium digital door lock engineered for modern living. Whether you're stepping out or managing access remotely, IMPERIA puts complete control at your fingertips.
| Feature | Details |
|---|---|
| Access Modes | Face Recognition, Palm Scanning, Fingerprint, NFC Card, Secure Password |
| Remote Control | WiFi-enabled with real-time alerts via Mobile App |
| Auto Lock & Open | Fully automatic locking and opening |
| Security | Tri-Bolt, Anti Pry Alarm, Privacy Mode |
| Camera | Live View Screen — see visitors on mobile app & inside screen |
| Battery | High-capacity rechargeable lithium battery with low battery indication |
| Emergency Access | Emergency Key + Emergency Power Backup (USB) |
| Warranty | 2-Year Manufacturer Warranty |
| Parameter | Details |
|---|---|
| Item Code | IM05: DHDDLIM057AFA-BL (Black) IM06: DHDDLIM067AFA-AT (Anthracite) |
| Door Type | Wooden Door |
| Door Thickness | 35–55 mm |
| Backset | 60 mm |
| Dimensions (Internal) | 422(H) × 140.2(W) × 80.6(D) mm |
| Dimensions (External) | 422(H) × 140.2(W) × 77.8(D) mm |
| Access Type | Max Users |
|---|---|
| General | Up to 191 |
| Admin | Up to 9 |
| Fingerprint | Up to 50 |
| Password + Card + Palm + Face | Up to 150 |
🎉 Flat 20% Off — Use Code FLAT20 at Checkout
Available at KnobsKart.com — India's premium hardware destination.
Rs. 48,800.00
Experience next-level home security with the Ebco IMPERIA — a premium digital door lock engineered for modern living. Whether you're stepping out or managing access remotely, IMPERIA puts complete control at your fingertips.
| Feature | Details |
|---|---|
| Access Modes | Face Recognition, Palm Scanning, Fingerprint, RFID Card, Secure Password |
| Remote Control | WiFi-enabled with real-time alerts via Mobile App |
| Auto Lock & Open | Fully automatic locking and opening |
| Security | Tri-Bolt, Anti Pry Alarm, Privacy Mode |
| Camera | Live View Screen — see visitors on mobile app & inside screen |
| Battery | 2 Lithium Rechargeable Batteries (4200mAh) with low battery indication |
| Emergency Access | Emergency Key + Emergency Power Backup |
| Warranty | 2-Year Manufacturer Warranty |
| Parameter | Details |
|---|---|
| Item Code | IM01: DHDDLIM017AFA-BL (Black) | IM02: DHDDLIM027AFA-CR (Copper) |
| Door Type | Wooden Door |
| Door Thickness | 38–120 mm |
| Backset | 60 mm |
| Dimensions (Internal) | 420(H) × 73(W) × 68(D) mm |
| Dimensions (External) | 416(H) × 68(W) × 58(D) mm |
| Access Type | Max Users |
|---|---|
| Face Recognition | Up to 20 |
| Palm | Up to 20 |
| Card | Up to 50 |
| Fingerprint | Up to 100 |
| Password | Up to 50 |
🎉 Flat 20% Off — Use Code FLAT20 at Checkout
Available exclusively at KnobsKart.com — India's premium hardware destination.
Rs. 521.00
Forget wooden drawer sides. The Ebco Full Panel Quick Fit replaces them entirely — a single back panel clips on to complete the drawer, cutting assembly time, reducing material costs, and delivering a cleaner finish every time.
Built for kitchen cabinets, wardrobes, office furniture, and modular interiors.
| Model | Height (mm) | Depth (mm) | Width (mm) | Extension (mm) | Max Load (kg) | Finish |
|---|---|---|---|---|---|---|
| FPQ54-40-40 | 54 | 400 | 400 | 325 | 25 | Ivory |
| A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|
| 54 | 71 | 52 | 32 |
| 86 | 103 | 84 | 64 |
| 125 | 142 | 123 | 96 |
Step 1 — Side Gap & Panel Dimensions (Fig. 1)
Allow a 15.5 mm side gap per side — the full panel serves as the drawer side. Refer to the A/B/C/D dimensional table above for panel sizing by height.
Step 2 — Top Clearance & Auto-Close Offset (Fig. 2)
Maintain a 25.4 mm (1") clearance from the drawer’s top edge to allow tilt-and-remove. Offset the fixed slide by 2 mm to activate auto-closing. Recess all screw heads to avoid interference.
Step 3 — Mount Fixed Slides & Attach Rear Panel (Fig. 3)
Fit fixed slides inside the cabinet, parallel and at equal heights. For 86 mm and 125 mm panels, use the eccentric cam for front facia height adjustment (6 mm bottom track). Insert the rear panel into the side panels through the key slot provided.
Step 4 — Assemble & Insert Drawer Unit (Fig. 4)
Place the bottom flap through the track in the side panels. Fix the front facia with the bracket, then slide the assembled drawer unit onto the fixed slides inside the cabinet until it clicks into place.
What’s in the pack? — 2 pairs (4 slides), enough for 2 complete drawers.
What’s the load capacity? — Up to 25 kg per drawer.
What drawer size does this fit? — 400 mm depth × 400 mm width, with 325 mm extension.
Is it System 32 compatible? — Yes, fully compatible.
Can the drawer be removed without tools? — Yes, tilt-and-remove with guided re-insertion.
What finish is available? — Ivory.
