EBCO Recessed Hinge 35 - Soft Close

EBCO Recessed Hinge 35 – Soft Close

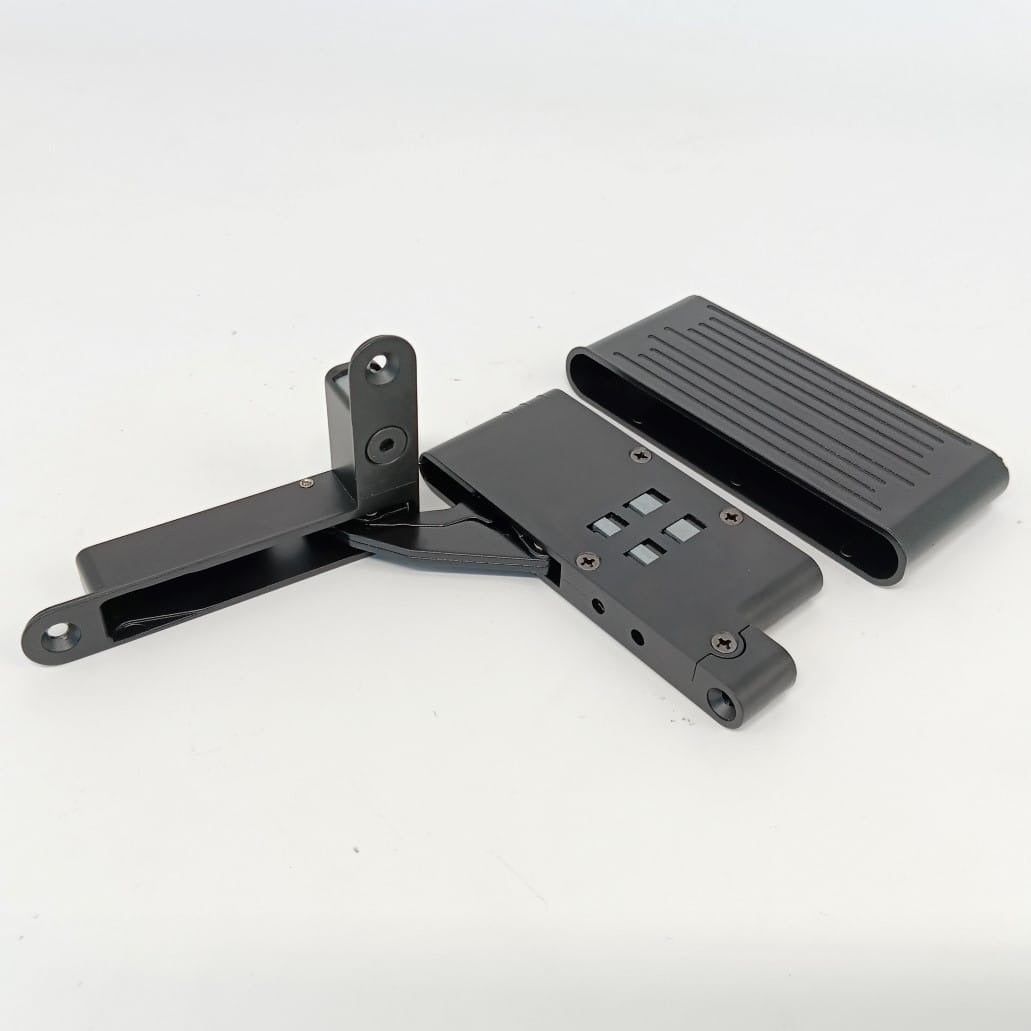

The EBCO Recessed Hinge 35 Soft Close is a heavy-duty concealed hinge engineered for larger wooden and aluminium profile cabinet doors. With an integrated soft-close mechanism, it delivers silent, controlled door closure — preventing slamming and reducing long-term wear, even under heavier loads.

Key Features

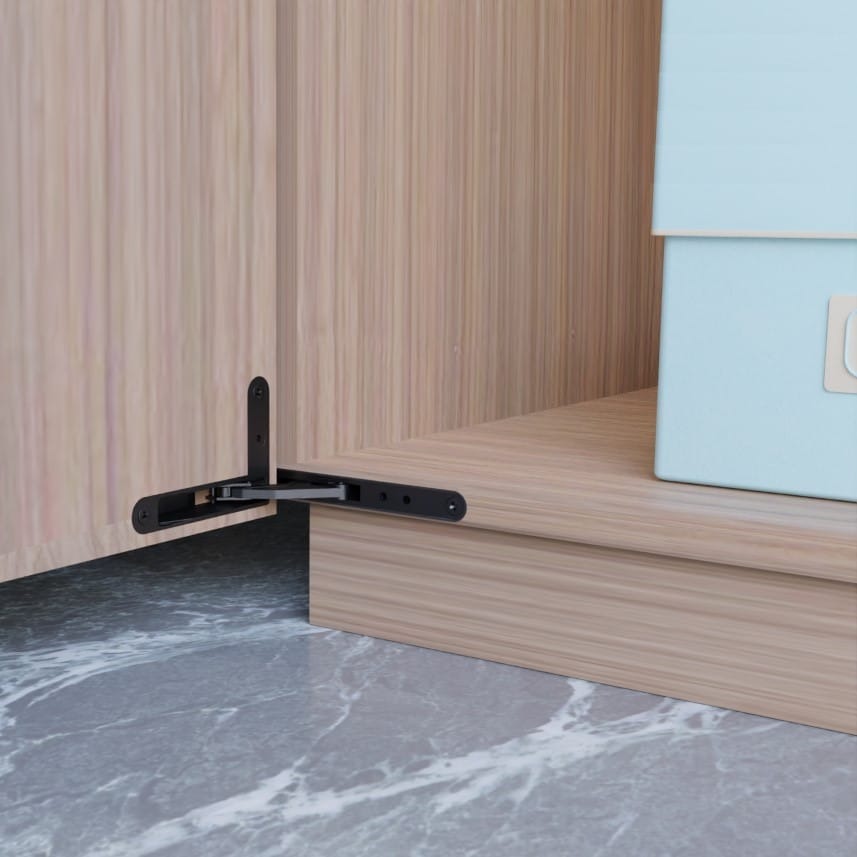

  • Recessed design for wooden and aluminium profile frame doors
  • Soft-close mechanism for quiet, controlled closure
  • 3D adjustment for precise door alignment
  • 105° opening angle for full cabinet access
  • Shutter thickness: 26–40 mm
  • Max. recommended shutter size (2 hinges): Width ≤ 650 mm, Height ≤ 3000 mm
  • Max. recommended shutter weight (2 hinges): ≤ 35 kg
  • Finish: Tin Nickel (TN)
  • Pack: Set of 2 pcs.

Why Choose EBCO Recessed Hinge 35?

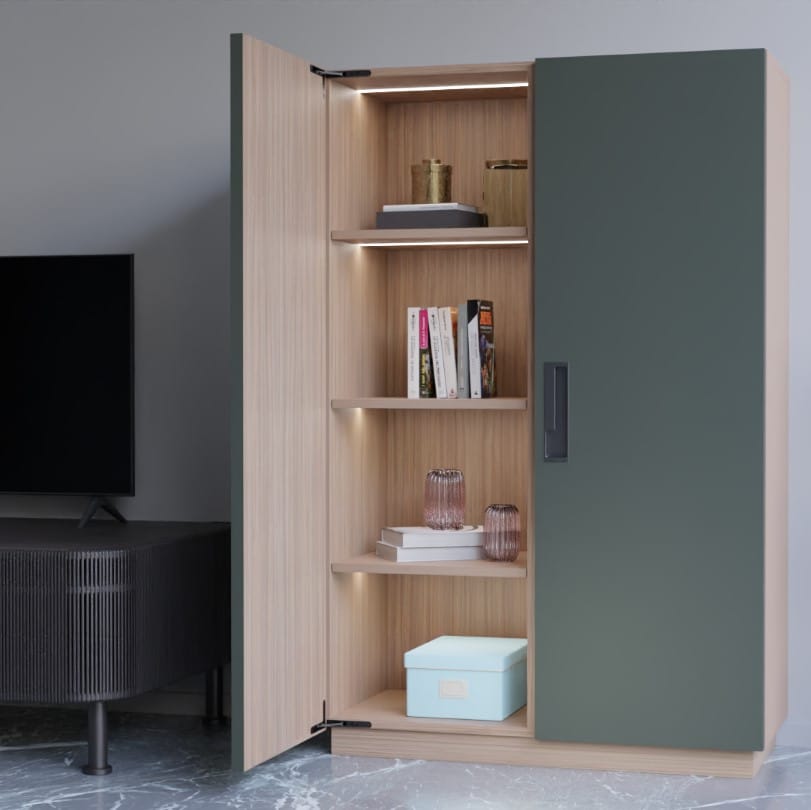

Designed for taller and heavier shutters, the Recessed Hinge 35 combines a flush, concealed fit with a dampened closing action. Ideal for premium modular kitchens, wardrobes, and large cabinetry, these hinges deliver both aesthetics and reliability for demanding residential and commercial applications.

Product Specifications

Item Code Finish Pack
Recessed Hinge 35 Soft Close – Left & Right RH35-SC-TN Tin Nickel (TN) Set of 2 pcs.
Housing for Recessed Hinge 35 – Wood RH35-HW Tin Nickel (TN) Set of 2 pcs.

Note: Housing (RH35-HW) is required for installation and is available as a separate variant.

Compatible Accessories

The following accessories are recommended for use with the EBCO Recessed Hinge 35:

Item Code Finish
L Connectors for Recessed Hinge 35 – Aluminium RH35-LC1 Zinc White

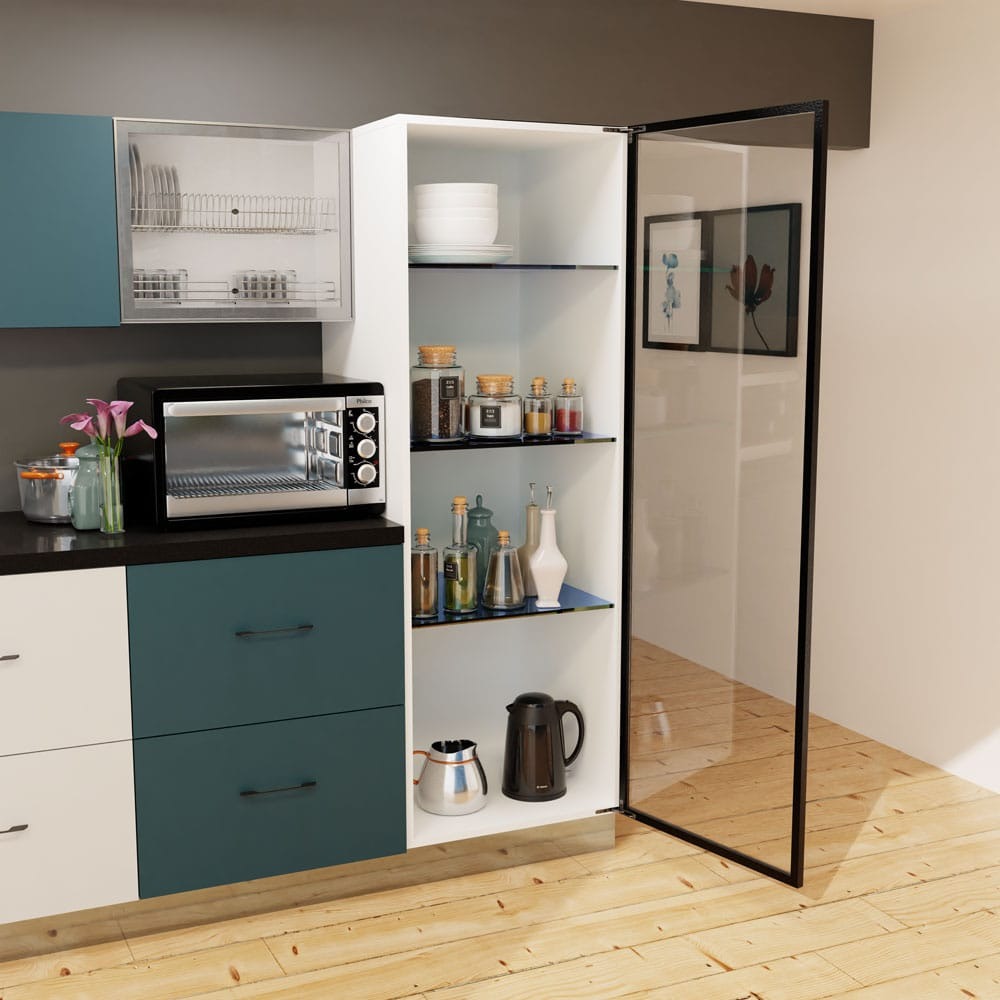

Aluminium Glass Shutter Profile with 4 mm Sleeve for Recessed Hinge 35 RH35-AGP-AS / RH35-AGP-AB Anodized Silver / Anodized Black
Aluminium Glass Shutter Profile with Handle & 4 mm Sleeve for Recessed Hinge 35 RH35-AGP-H-AS / RH35-AGP-H-AB Anodized Silver / Anodized Black
